Penn-Ohio Logistics LLC
Toll Processing Services
Penn-Ohio's material processing consists of both cutting to length and saw cutting a variety of materials.

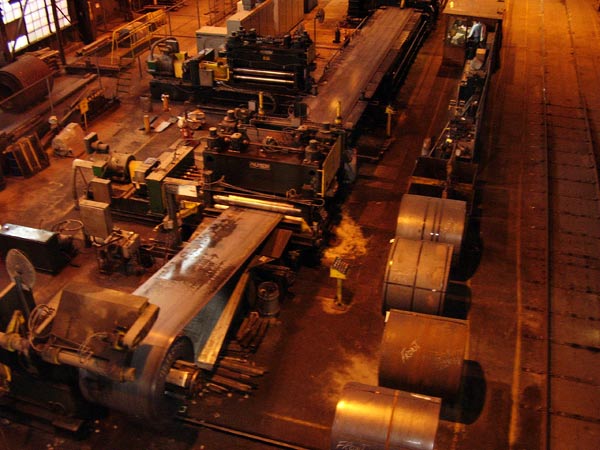

| Paxon Cut To Length Line | |
|---|---|
| Material | Hot Rolled, Hot Rolled P&O, Galvanized, High Strength Low Alloy Grades. |
| Thickness | Minimum = 0.060" |
| Maximum = 0.375" | |
| (Slightly thicker on mild steel in narrower widths) | |
| Width | Minimum = 15" |
| Maximum = 84" | |
| Cut Length | 12" +/- 1/16" |
| 288" (stacker capacity) +/- 1/16" | |
| (Can run longer lengths - please inquire) | |
| Coil Weights | 50,000 # Maximum |
| Coil I.D. | Minimum = 20" Maximum = 32" |
| Coil O.D. | Minimum = 38" Maximum = 80" |
Click to Enlarge
Click to Enlarge
Click to Enlarge

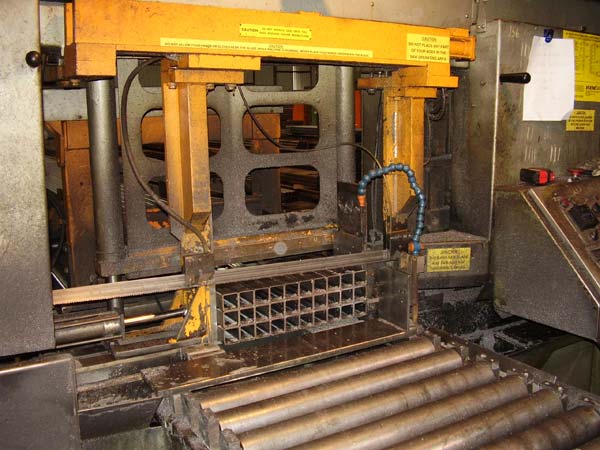

Production Saw Cutting
- (3) Hemsaw #130 Double Column - 18" X 20" capacity - 18" diameter round capacity
- (1) Hemsaw #160 Double Column - 27" X 30" capacity - 27" diameter round capacity
- (1) Amada #750 Double Column - 22" X 25" capacity - 22" diameter round capacity
- (1) Amada #850 Double Column - 24" X 27" capacity - 24" diameter round capacity

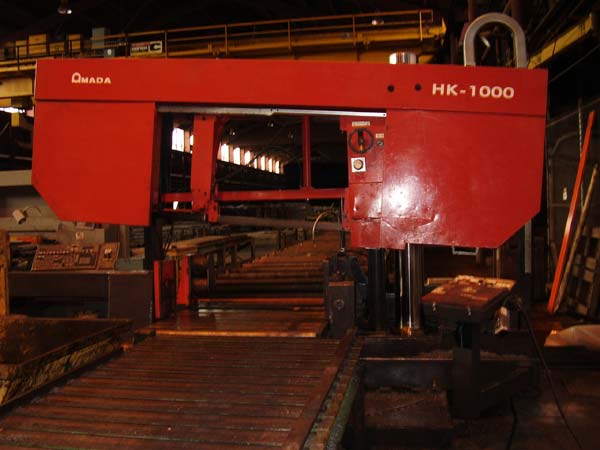

- (1) Amada #1000 Double Column - 28" X 36" capacity - 28" diameter round capacity
Pipe Cutting and Beveling
- (1) B&O Pipe cut off and bevel machine - 1.500" MIN DIAMETER - 6.625" MAX DIAMETER
